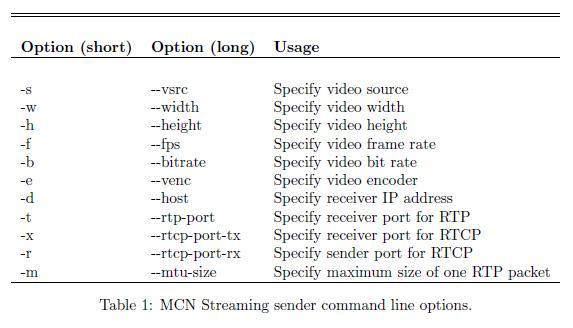

Above table is a complete list of MCN Streaming sender options. Below we list the default and possible alternative values for each option. Specify Video Source- Default value: v4l2src. v4l2src is used to capture video from v4l2 devices, like webcams and tv cards.
- Alternative value: videotestsrc. The videotestsrc element is used to produce test video data in a wide variety of formats.
Specify Video WidthDefault value is 176. Specify Video HeightDefault value is 144. Specify Video Frame RateDefault value is 15 (in fps). Specify Video Bit RateDefault value is 128 (in kbps). Specify Video Encoder- Default value: x264enc. x264enc is libx264-based H.264 encoder plug-in.
- Alternative value:
- ffenc_h263: FFmpeg H.263/H.263-1996 encoder.
- ff.enc_h263p: FFmpeg H.263+/H.263-1998/H.263 version 2 encoder.

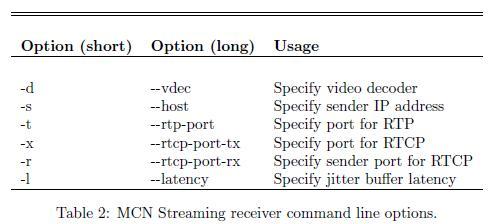

Specify Receiver IP AddressDefault value is 127.0.0.1 (localhost). Specify Receiver Port for RTPDefault value is 5000. Specify Receiver Port for RTCPDefault value is 5001. Specify Sender Port for RCTPDefault value is 5005. Specify Maximum Size of One RTP PacketDefault value is 1024 (in bytes). Receiver OptionsAbove table is a complete list of MCN Streaming receiver options. Below we list the default and possible alternative values for each option. Specify Video Decoder- Default value: ffdec_h264.
- Alternative value: ffdec_h263.
Specify Sender IP AddressDefault value is 127.0.0.1 (localhost). Specify Port for RTPDefault value is 5000. Specify Port for RTCPDefault value is 5001. Specify Sender Port for RCTPDefault value is 5005. Specify Jitter Bu.er LatencyAmount of ms to buffer in the jitterbuffers. Default value is 500. |
